PTFE/Teflon Rod/Bar

PTFE/TEFLON ROD/BAR

Specifications 1. Use virgin PTFE resin to make 2. The size is: A)OD: 3mm~25mm, Max length 4200mm. B)OD: 25mm~150mm, Max length 4200. C)OD 150~500mm, 1000mm. 3. Tolerance: -0.1~+0.1mm 4. Color: Natural white, red, yellow, black. 5. Surfact: Smooth, no impurities, no black spot. 6. Perfect package: Inside is plastic paper, outside is fumigation wooden box. 7. Delivery time is usually 10days, as can according to the fact quantity to deliver. Characteristics of PTFE Rod One key importantadvantage of PTFE Rod is its operating temperature range,it can easily outperform other engineering plastics by being able to perform continuously at-250°C, right up to an amazing 250°C. Another important advantage of PTFE Rod is its outstanding co-efficient of friction, PTFE is in the record books ashaving one of the lowest friction values known to man. PTFE also has excellentacid and chemical resistance. Another feature of PTFE is its ability to set byor due to compression. PTFE has excellent electrical resistance. PTFE is alsowater repellent and is often used in the manufacture of modern high performing,water repellent and breathable clothing. Applications for PTFE Rod PTFE is excellentfor low friction bearings, bushes, rollers and pulleys. PTFE is also almostexclusively used in cryogenic components due to its ultra low operating temperatures.PTFE Rod is regularly used for seals. PTFE Rod has become a very importantengineering plastic used within the aerospace industry and aeronautics. PTFE isoften used within the food industry companies. Another useful application overthe years has been in the use of product or component handles due to its resistance to heat and heat transfer. When an application for electricalresistance becomes too high for other materials, PTFE Rod can fill a veryimportant gap. Advantagesof PTFE Rod Because PTFE hassuch a low co-efficient of friction it offers a material that when used willreduce load and drag in bearings to improve efficiency and reduce frictional losses and PTFE will outlast other materials. Because PTFE Rod will set due to compression, PTFE seals will conform to mating components resulting inexcellent sealing capacity. PTFE is reasonably easy to machine which helps withreduced machining costs and increased capacity and efficiency. PTFE isresistant to most acids allowing this material to be used in aggressiveenvironments to where such materials as Polypropylene are unsatisfactory. . Features of PTFE Rod 1.Usage temperaturerange is very broad (Celsius from - 200 degrees to +260 degrees). 2. Anti-majoritychemical substance's corrosiveness, except some fluorides and alkalinity moltenmetal. 3. Excellentmechanical properties, aging resistance. 4. Excellent flameresistance(Conforms to ASTM-D635 and D470 test step),in the air to be regulatedas a flame retardant material. 5. Very low waterabsorption. 6. Has the selflubrication and not the coherency. 7. Excellentinsulation characteristic (Regardless of its frequency and temperature how). Specificationsof PTFE Rod Name Diameter Length PTFE Molded rod 6~500mm 100~500mm PTFE Extruded rod 3~500mm 1000~5000mm Material Grade 1, Import Grade (Basell, Dupont, Daikin, Exxon, etc) 2, Virgin Grade (Pure China material) 3, Filled Grade (Filled with graphite, carbon, glass fiber, bronze powder,etc) 4, Semi-recycled Grade (Customized percentage) 5, Full-recycled Grade (Total recycled material, low performance)

Source:http://www.sukoptfe.com/various-ptfe-teflon/ptfe-teflon-rod-bar

Teflon PTFE Sheet

EFLON PTFE SHEET

A) PTFE sheet own good quality, the tensile strength and crack elongation are all above international standard. B) the tolerance is samll. C) the surface is perfect, no black spot and yellow spot, tidy corner, surface gloss. Uniform thickness. D) can make any color PTFE sheet, for example: Natural white, black, yellow, red and so on. E) own best performance, can be filled other material, for example: Bronze, fiber glass,carbon, graphite, moly, APR, and so on. F) can withstand temperture: -180~+260 G) can make PTFE molded sheet, PTFE skived and PTFE film with any sizes. For example: PTFE molded sheet: 100X100mm, 200X200mm, 500X500mm,600X600mm,800X800mm, 1000X1000mm, 1200X1200mm, 1500X1500mm,2000X1000mm PTFE skived sheet: Thickness 0.2mm~7mm, width100mm, 300mm, 500mm,600mm, 800mm,1000mm, 1200mm, 1500mm, 1800mm, 2000mm. H) own have advanced equipment and many years experience. Model Pressure (kN) Length of Working Table Distance between Housings Throat Depth Max. Stroke Length Max. open height Electric Power Machine Dimension (L x W x H) 40T/2200 400 2200 1775 250 100 320 5.5 2300 x 1500 x 2000 40T/2500 400 2500 1975 250 100 320 5.5 2600 x 1500 x 2000 63T/2500 630 2500 2095 250 120 360 5.5 2600 x 1600 x 2300 63T/3200 630 3200 2570 250 120 360 5.5 3300 x 1600 x 2300 80T/3200 800 3200 2565 320 120 360 7.5 3300 x 1700 x 2300 80T/4000 800 4000 3165 320 120 360 7.5 4100 x 1700 x 2300 100T/3200 1000 3200 2560 320 120 360 7.5 3300 x 1800 x 2400 100T/4000 1000 4000 3160 320 120 360 7.5 4100 x 1800 x 2400 125T/3200 1250 3200 2550 320 120 360 7.5 3250 x 1920 x 2450 125T/4000 1250 4000 3450 320 120 360 7.5 4000 x 1920 x 2500 160T/3200 1600 3200 2540 320 180 440 11 3300 x 1600 x 2600 160T/4000 1600 4000 3140 320 180 440 11 4100 x 2000 x 2600 160T/6000 1600 6000 4740 320 180 440 11 6100 x 2000 x 2600 200T/3200 2000 3200 2540 320 250 530 11 3300 x 2100 x 2800 200T/4000 2000 4000 3140 320 250 530 15 4100 x 2100 x 2900 200T/5000 2000 5000 3940 320 250 530 15 5100 x 2100 x 3000 250T/4000 2500 4000 3120 400 250 560 18.5 4100 x 2200 x 3500 250T/5000 2500 5000 3920 400 250 560 18.5 5100 x 2200 x 3500 250T/6000 2500 6000 4720 400 250 560 18.5 6100 x 2200 x 3500 300T/5000 3000 5000 3910 400 250 560 22 5100 x 2600 x 4000 300T/6000 3000 6000 4710 400 250 560 22 6100 x 2600 x 4000 300T/7000 3000 7000 5620 400 250 560 22 7100 x 2600 x 4400 320T/7000 3200 7000 5620 400 250 560 22 7100 x 2600 x 4400 350T/6000 3500 6000 5100 400 250 560 30 6100 x 2600 x 4200 350T/7000 3500 7000 5620 400 250 560 30 7100 x 2600 x 4500 400T/4000 4000 4000 3100 400 300 620 30 4100 x 2700 x 3800 400T/6000 4000 6000 4280 400 320 620 30 6100 x 2800 x 4200 500T/5000 5000 5000 4100 400 320 630 37 5100 x 3000 x 4400 500T/6000 5000 6000 4820 400 320 630 37 6100 x 3000 x 4700 500T/7000 5000 7000 5620 400 320 630 37 7100 x 3000 x 4900 600T/6000 6000 6000 4820 400 320 630 45 6100 x 2965 x 4700 600T/7000 6000 7000 5620 400 320 630 45 7100 x 2965 x 4900 Packaging & Shipping: Packaging 1. Wooden case. 2. According to customer’s requirement Delivery 1. Stock size 1-3 working days. 2. Custom size 10-15 working days. Source:http://www.sukoptfe.com/various-ptfe-teflon/teflon-ptfe-sheet

PTFE Teflon Flim

SPECIFICATIONS

Thickness:0.1mm~10mm
Size:1000mm*10,000mm
FDA,Rohs,ISO,SGS passed

Skived PTFE Flim, Teflon film

PTFE Molded sheet is manufactured by suspend PTFE resin after molding. It has the best ability to anti chemistry corrosion, and non-aging, and can be used under -180C ~ +260C without load, and it has the lowest fiction coefficients in known solid materials.

Skived PTFE film, Teflon film of advantages

• Unaffected by almost all chemical
• Continuous use at high temperatures
• Slippery non-stick surface
• Outstanding dielectric properties
• Outstanding chemical resistance
• Superb electrical insulating properties
• A wide working temperature range from -180 °C + 260°C
• A very low coefficient of friction, resulting in unique non-stick behaviour
• High dielectric properties
• Non-toxic

Virgin White PTFE film, plastic pure teflon film of properties

• Excellent chemical resistance
• Lowest co-efficient of friction
• Highest operating temperature and stability
• Physiologically inert
• Excellent electrical properties

Pure PTFE film, teflon plastic sheets of sizes

Item	Style	Thickness	Width	Length
PTFE Sheet (Teflon Sheet)	Skived	0.1 mm ~ 10 mm	1000mm, 1200mm, 1500mm	1000mm ~ 10,000mm
	Molded	2 mm ~ 100 mm	300mm, 600mm, 900mm,1000mm,1200mm	300mm, 600mm, 900mm,1000mm,1200mm
	Filled	1mm ~100 mm	1000mm, 1200mm, 1500mm	1000mm ~10,000mm

100% virgin PTFE film, teflon film products of technology datas

Properties	Unit	Result
Apparent density	g/cm3	2.10~2.30
Tensile strength(min)	Mpa	≥25
Uitimate elongation(min)	%	≥200
Working Temp	°C	-180~260
Melting point	°C	327
Produce Max. Temp	°C	385
Hardness Rockwell		M65
Dielectric Strength	KV/mm	59
Surface Resistivity	Ohms	>10^7
Flammability UL94		530

Source:http://www.sukoptfe.com/various-ptfe-teflon/ptfe-teflon-flim

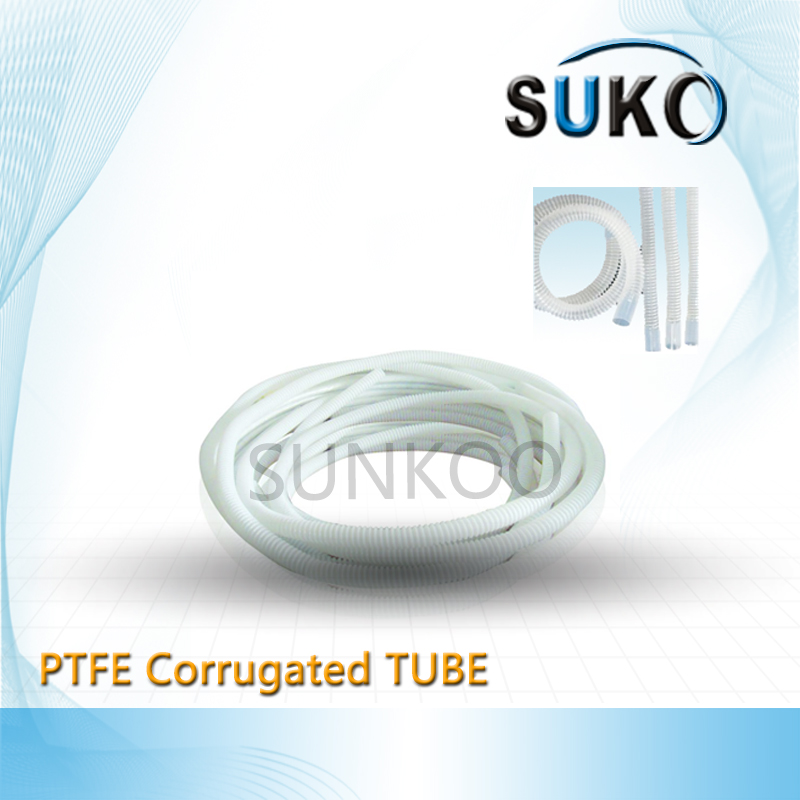

PTFE Corrugated Tube

The flexible PTFE convoluted hosetemperature is from -196 to 700 deg.C, pressure can be 0.6~10Mpa, the material of the flexible metal bellow is made of SS304,SS321,SS316 or SS316L as your requirement, we produce stainless steel metal bellow in accordance with the ISO9001:2008 GB/T14525-2010 standard.

Pipe Diameter	DN1/2-32inch
Pipe Material	SS304,316L,etc
Pipe thickness	0.18-2.0mm
Braided mesh material	SS304 etc
Braided mesh layer	single layer or double layers
Max. woking pressure	10Mpa
Working temperature	(-196)~(+700) °c
Connect type	flange,thread,welded.etc
Standard	ANSI,JIS,DIN,GOST,etc
Flange material	stainless steel or carbon steel
Pipe assembly length	according to clients' requirements

PTFE Convoluted Hose Features

1.To absorb effectively vibration, noise,thermal expansion from pipeline system;

2.To resolve minor deviation because of piping connecting and eliminate the pipeline residual stress;

3.Applied to repeated motion in high temperature areas,good anti-fatigue performance;

4.Good flexibility,resistant to high temperature, resistant to corrosion.

5.Applied in the fields of petroleum,chemical industry,aerospace,metallurgy,electricity,gas,building,mechanical,construction,iron and steel,paper making,fabric,medicine,food and vessels ect.

PTFE Convoluted Hose Characteristics

One key important advantage of PTFE convoluted hose is its operating temperature range, it can easily out perform other engineering plastics by being able to perform continuously at -250°C, right up to an amazing 250°C. Another important advantage of PTFE is its outstanding co-efficient of friction, PTFE convoluted hose is in the record books as having one of the lowest friction values known to man. PTFE convoluted hose also has excellent acid and chemical resistance. Another feature of PTFE convoluted hose is its ability to set by or due to compression. PTFE convoluted hose has excellent electrical resistance. PTFE convoluted hose is also water repellent and is often used in the manufacture of modern high performing, water repellent and breathable clothing.

PTFE Corrugated Tube Size List:

PTFE Convoluted Hose Applications

PTFE convoluted hose is excellent for low friction bearings, bushes, rollers and pulleys. PTFE convoluted hose is also almost exclusively used in cryogenic components due to its ultra low operating temperatures. PTFE convoluted hose is regularly used for seals. PTFE convoluted hose has become a very important engineering plastic used within the aerospace industry and aeronautics. PTFE convoluted hose is often used within the food industry companies. Another useful application over the years has been in the use of product or component handles due to its resistance to heat and heat transfer. When an application for electrical resistance becomes too high for other materials, PTFE convoluted hose can fill a very important gap.

PTFE Convoluted Hose Advantages

Because PTFE convoluted hose has such a low co-efficient of friction it offers a material that when used will reduce load and drag in bearings to improve efficiency and reduce frictional losses and PTFE convoluted hose will outlast other materials. Because PTFE convoluted hose will set due to compression, PTFE convoluted hose will conform to mating components resulting in excellent sealing capacity. PTFE convoluted hose is reasonably easy to machine which helps with reduced machining costs and increased capacity and efficiency. PTFE convoluted hose is resistant to most acids allowing this material to be used in aggressive environments to where such materials as Polypropylene are unsatisfactory. .

PTFE Convoluted Hose Specifications

1.Trustworthy quality

2.Low minimum order quantity with competitive prices.

3.Good after sale services.

4.100% virgin PTFE resin and recycled materials available

5.Our PTFE tube comes with flat and tidy surface without defects or crevices.

6.We can also produce according to drawings provided by customers.

Source:http://www.sukoptfe.com/various-ptfe-teflon/ptfe-corrugated-tube

Teflon PTFE Rod Bar Single Screw Extruder

Teflon PTFE Rod Bar Single Screw Extruder Machine

Product Description: The PFMY600 rod ram extruder series from Sunkoo is able to extrude rod which dia from 300mm to 600mm.The control system is automatic computerized and has a control panel to programming of all necessary parameters.The extruder is prepared for tools for: • Single rods • Multiple rods FMY-600 Rod Extruder Features Include: 1.Save time and money. 2.Intelligent and easy-to-use, 3.Small workplace foot extruder requiring less space and electricity. 4.Stable quality and the physical properties is adjustable. 5.Precise temperature control,reaches + -1 degree. 6.Long- life, with modern technology and optimized design. Machine's Features: 1.Horizontal Ram Extruder for PTFE rod 2.Ram extruding machine for PTFE extruded rod 3.Using for Pre-sintering PTFE material. 4.Suit for new PTFE material or Recycle PTFE material. The ergonomics and the extremely user-friendly operation represent a new standard which are not previously encountered in conventional designs.The PFMY600 Series allow users to operate the ram extruder after a very short training phase.Due to the low energy consumption, silent operation and integrated quick and easy extrusion system,the PFMY600 series extruders are ideal for factory and office environments, requiring less space and electricity. Tech Specs: Type PTFE Moulding Press Screw Hydraulic Press Automatic Automatic Computerized Computerized Plastic Processed Sintered PTFE Powder PTFE Teflon Rod Range Dia 300mm-600mm Machine with PTFE Rod Mould Mould Depends on Required Process Verticle Press Moulding M/c Power KW 20 Tolerance mm Depends Length mm 300mm Production Per Hour in Kg 12 - 20 Electricity Consumption Per hour 32 Temperature zone 12-16 Compressive force [kN] 1500-3500 Weight of the Machine 8300 High of the Machine mm 1200 Voltage/PH/Hz AC380V 50Hz 3 Phase Floor area of the Machine M2 14

Source:http://www.sukoptfe.com/teflon-ptfe-rod-bar-single-screw-extruder-pfmy600-dia-20mm-500mm

Vertical Type Rod Ram Extuder Machine

VERTICAL TYPE ROD RAM EXTUDER MACHINE

Machine's Features: Teflon PTFE Rods bar Ram Extruder singlescrew Machine Dia 4-20mm 1.Vertical type Ram Extruder for PTFErod 2.Ram extruding machine for PTFE rod 3.Using for Pre-sintering PTFE material 4.Suit for new PTFE material or RecyclePTFE material. Technical Data: Type PTFE Vertical type Ram Extruder Screw Single-Plunger Rod Dia Range Min - Max Dia 4mm -20 mm Automatic Automatic Computerized Computerized Plastic Processed Sintered PTFE Powder Machine with PTFE Rod Mould Mould Depends on Required size Process Vertical type Ram Extruder M/c Power KW (Main Motor+ heating) 14 Tolerance mm 0-0.2mm + Length mm Unlimited Production Per Hour in Kg 7-10+ Electricity Consumption Per hour 2 Temperature zone 3-5 Compressive force [kN] 50 -250 Weight of the Machine 930 High of the Machine mm 2150 Voltage/PH/Hz AC380V 50Hz 3 Phase Floor area of the Machine M2 3.5

Source:http://www.sukoptfe.com/vertical-type-rod-ram-extuder-machine-pflb20-dia-4mm-20mm

Various Teflon PTFE products

PTFE is an amazing material. Its wide rangeof properties include outstanding chemical resistance, a continuous working tem per ature range of -26deg C to +260 deg C, a low coefficient of friction andto-tal UV resistance. It has excellent insulation properties and is suitable for use with food.Used for seals,gaskets,o-rings, valve seats and linings (chemical). The addition of fillerssuch as glass,car-bon and bronze can further enhance the properties of PTFE.

1.Very low co-efficient of friction

2.Excellent chemical properties

3.Temperature range-260 to +260℃

4.Excellent chemical resistance

5.Suitable for contact with food

6.Fillers can be added to improve properties

PTFE Rod

One keyimportant advantage of PTFE Rod is its operating temperature range, it caneasily out perform other engineering plastics by being able to per form continuously at -250°C, right up to an amazing 250°C. Another important advantage of PTFE Rod is its outstanding co-efficient of friction, PTFE is inthe record books as having one of the lowest friction values known to man. PTFEalso has excellent acid and chemical resistance. Another feature of PTFE is itsability to set by or due to compression. PTFE has excellent electricalresistance. PTFE is also water repellent and is often used in the manufactureof modern high performing, water repellent and breathable clothing.

PTFE Sheet

Skived PTFE Sheet, MoldedPTFE Plate, FilledPTFE Sheets and Expanded PTFE Sheet common type PTFE plates, Etched PTFE Sheet. Use Skived and Molded sheets can bemade in any thickness from 0.1mm up to 100mm. Skived ptfe sheet thickness from0.1mm to 10mm.

Moldedptfe sheet from 3mm to 100mm. Filled ptfe sheet ( FilledGraphite, Filled Fiber Glass,Filled Bronze, Filled Carbon ). thickness from1mm to 100mm. Skived and Molded PTFE sheet is ideal as a slide surface, isideal for cutting into blanks for machining into smaller parts.

PTFE Film

Skived Teflon (PTFE) film sheets are manufactured from virgin Teflon (PTFE)resins which are molded, sintered, and skived to the appropriate thickness.Both Teflon (PTFE) sheets and film are widely used in a number of industriesdue to the material’s outstanding characteristics, including heat and chemicalresistance, dielectric strength and anti-stick properties. Both sheets and filmmay also be chemically etched on one or both sides for bondability.

PTFE Tube

PTFE Tube by Extruded, Molded and Filled. Extruded ptfe tubing OD from 1mm to 300mm.

Moldedptfe tubing from 30mm to 600mm. Filled ptfe tubing ( Filled graphite, Filled Fiber glass, Filled Bronze, Filled Carbon ), Size OD from 30mm to 600mm.

PTFE Gasket

PTFE Gasket by Cutand Molding. Cut ptfe gasket size OD. from 10mm to 2500mm. Molding ptfe gasket size OD from 10mm to 1200mm. Filled ptfe gasket ( Filled graphite, Filled fiberglass,Filled bronze, Filled carbon and Filled steel )Size OD from 10mm to 2500mm.

Source:http://www.sukoptfe.com/various-teflon-ptfe-products

Teflon PTFE Extruded Hoses

Basic Info · Material:PTFE · Export Markets:Global Product Description 1. Feature: There are three kind of Teflon rod. Selecting dispersion polymerization Teflon resin and after cataplasm bulldoze, the rod whose diameter is 4mm-9mm is produced; Selecting suspend Teflon resin and after extrusion the rod whose diameter is 10mm-50mm is produced; While the rod with 55mm-300mm diameter by die pressing. In known plastic, Teflon has the best ability to anti chemistry corrosion and medium performance, non-aging, non-sticking, and can be used under temp. -180 ~+260Temperature without load, and it has the lowest friction coefficients in known solid materials. 2. Usage: Electric isolation part, sealed spacer, antisticking materials 3. Specification: 1 The aging of theclimate-resistant 2 Noncombustible 3 The high oxygen idex 4 Excellent dielectricperformance 5 Resistant to high voltage 6 Good corrosion resistance 7 Almost do not disolve anysolvents 8 The static frictioncoefficient is the smallest of plastic 9 A prominent non-stickysurface 10 Good tensile strength PTFE Hose Useages: Widely used inaerospace,instrumentation,medical and pharaceuticals,electronic appliances,postand telecommunications,petrochemical,metallurgical electicity, householdappliances,lighting. PTFE Hose Advantage 1、almost universal chemical resistance 2、free fromextractable agents 3、 physiologically safe 4、non-adhesive surface 5、very goodsliding characteristics 6、 very good dielectric characteristics 7、resistant to irradiation and weather PTFE Hose Description 100% virgin manufacture of PTFE capillary tube is made of superior polytetrafluoroethyleneresin through special extrusion and sintering process. This product is highlyelectrical insulating, highly flame retardant, self-lubricating and highlyresistant to super high temperature, chemical reagents and almost all oil andother chemicals. It finds extensive applications in automotive,war industry and aerospace markets. PTFE Hose Features Highly temperatureResistant Highly flame retardant Resistant to corrosion, strong acid, strong base, chemical reagents, and oil etc Continuousoperating temperature: -65°C~200°C RoHS compliant . Flammability: VW-1 Standard color: Transparent,black , red etc Non-stickproperties PTFE capillary tube Can be steam or chemically sterilizedin-line Superior chemical resistivity and low coefficient of friction PTFE Hose Details Temperatureresistance: from -180°C to +250°C Features: PTFEhoses can be covered by various clad materials according to customersdifferentanti-pressure require ments, so as to satisfy their demand on anti-pressure. Temperature : -73° C to+260° C Application : Brake andClutch hoses. Instrument hoses. Fuel injection hoses. Fire extinguisher lines.Turbocharger oil feed and boost hoses. Any application subjected to hightemperatures. Flexible PTFE hose Tube:PTFE(polytetrafluorethylene) Application range:averagepressure application with hydraulic fluids within a high temperaturePTFE pipe wrapped stainlesssteel wire and connection methods: Operating Instructions Users shall select types of quick couplings appropriately according tooperating requirements and features of joints (including work pressure, mediumproperties, and flow, temperature, corrosiveness and ambient temperature,quantities and connecting types of pipes etc.)

TAGS:Teflon PTFE,Ptfe Material,Teflon Ptfe,Sheet PTFE,Corrugated Tube

Source:http://www.sukoptfe.com/teflon-ptfe-extruded-hoses
