PTFE Lined Pipe

PTFE lined pipe provides unmatched chemical resistance at temperatures to 260ºC. Because its carbon chains are completely fluoronated, PTFE is chemically inert to the following broad range of commercial chemicals:

• All acids including hydrofluoric, hydrochloric, sulphuric and aqua regia
• Chlorides - organic and inorganic
• Sulphates - organic and inorganic
• Bleach solutions
• Solvents
• Phenols
• Caustics
• Peroxides

Combined with the chemical inertness of PTFE are its usual non stick properties. Thus a PTFE lined pipe system eliminates and/or minimises build up of deposits on the pipe walls, which otherwise would reduce flow and possibly affect processing operations.

PTFE Lined Pipe for chemical resistance at extreme temperatures

• Size range - 25 - 300 NB
• Steel Pipe - Welded or seamless, schedule 40
• Flanges - Any speciation (ASA 150lb STD)
• Pressure - As per steel pipe recommendation
• Max Temp - 230ºC
• Exterior Finish - Primer (ROZC) or as specified
• QA to ASTM requirement
• Dye Penetrate Test
• Welding Certificates (WPS / PQR)
• Spark Test / Electrostatically
• NDT Test
• Hydrostatic Test
• Material Certification

PTFE lined pipe is suitable for water, acid, chemical, food, mining, petroleum, gas, medical and energy applications.

PTFE Lined Pipe and Fittings

Use PTFE lined piping in any application where superior chemical resistance is required. Compared to other plastic pipe lining, PTFE has been proven to reduce permeation rates by up to 60%. It is also far more resistant to corrosion and high temperatures, and it features a full vacuum rating up to 450°F.

As a result, PTFE lined pipe and fittings are ideal for severe service applications, including pulp and paper processing, and power generation. Compared to exotic alloy materials or glass lining, PTFE is an economical choice that gets the job done right.

ptfe lined pipe, teflon lined fittings

Our PTFE lined & jacketed steel dip pipes and spargers are manufactured to the highest standards in the industry. All units are given extreme stress tests to validate their integrity and ensure long life.

PTFE is one of the most versatile materials used for lined pipe and fittings. It is near-universally chemically resistant and capable of withstanding temperatures as high as 450°F (230°C), making it ideal for handling nitric acid, oleum, nitrobenzene and other fluids used in industrial and manufacturing processes.

Choose a PTFE pipe fitting for pharmaceutical, food and beverage, and other applications where performance can’t be sacrificed in the name of cost savings.

PTFE Lined Pipes.

Our PTFE lined pipe series starts from 25mm to 300mm Diameter and up to 3000mm in lengths. Our standard pipes are with one end fix flange and one end loose flange.

• Size: 25 NB to 450 NB
• Pipe material: 106 grade B Sch 40 from 25 NB to 150 NB
• Flanges used: ASTM A 105/IS 2062
• Hydro test: at 29.8 Kg/cm2
• Spark test: 15 KVA

The manufactured using high-grade raw material, advent tools and sophisticated technologies, our range is widely used in diverse industrial applications. The raw material used during the fabrication process is sourced from reputed vendors such as DuPont. Offered in varied sizes & specifications, the range can also be customized as per the clients' requirements.

Features:High performance;Rugged;Low maintenance;Technical.

Extrusion PTFE Rod,Dia - 4mm to 200mm

Extrusion PTFE Rod has a wide range of practicable temperature from -180C~+260C and a wax-like surface to which anything hardly sticks. Extrusion Teflon rod has the lowest coefficient of friction of all known solid materials. Extrusion Teflon bar has the best electrical properties of all plastic.

Use of the Extrusion PTFE bar The electrical insulation used under various kinds of frequency, the seal liner of various kinds of corrosivity medium, Antisticking materials, lubrication material.

Project Name	Unit	Result
Apparent Density	g/cm3	2.1 ~ 2.3
Tensile Strength	Mpa	≥ 14.0
Ultimate Elongation	%	≥ 150
Dia. ( mm )	4, 5, 6, 7, 8, 9, 10, 12, 15, 18, 20, 25, 30, 35,
40, 45, 50, 55, 60, 65, 70, 75, 80 ...150.. .200
Length ( mm )	1000mm ; 2000mm

Extruded PTFE Rod Dia,5mm ~ 500mm

• Material: 100% recycled PTFE granular resin
• Style: Extruded PTFE Rod
• Diameter: 5mm ~ 120mm
• Length: 100mm ~ 3000mm. etc.
• Density: 2.1 ~ 2.3 g/cm3
• Temp: -180° C ~ + 260° C

Extruded PTFE Rod (100% recycled) is manufactured by techniques of paste extruding and RAM extruding method in the diameter from 5 to 110mm with PTFE granular resin. As PTFE(Teflon) has a very low co-efficient of friction, the surface of extruded PTFE rod has similar friction levels to ice. Extruded PTFE rod can work at -180° C ~+260° C and is the best electrical insulator of all known plastics.

Diameter(mm)		Length(mm)
Nominal	Tolerance	Nominal	Tolerance
5, 6	+0.480	100	+5.0
7, 8, 9	+0.580	100	+5.0
10, 13, 15, 16, 18	+1.100	100, 1000	+3.60
20, 25, 30	+1.130	100, 1000	+3.60
35, 40, 45, 50	+1.600	100, 1000	+3.60
55, 60, 65, 70, 75, 80, 85, 90, 100	+2.000	100, 1000	+2.50
110, 120, 150, 200	+2.500	100, 1000	+2.50

Teflon Max ID 25 FT Convoluted PTFE Hose

PTFE Convoluted Hose, ranging from 1/8" inside diameter up to a 4" inside diameter. Normally supplied in natural PTFE, we can also provide this convoluted tubing in FEP, MFA, PFA, ETFE, PVDF, or PEEK™.
PTFE Convoluted Tubing is available in coils or with cuffs (straight ends on each side of the tubing) that can be sized on the inside or outside diameter. Flares and flanges for fittings are available upon request.
Note: Please allow 4-5 weeks standard delivery time for this product.

Features:

• Teflon® Tubing - Convoluted PTFE Features
• PTFE has the lowest coefficient of friction of any solid material allowing unrestricted flow.
• Teflon PTFE moisture retention is less than 0.01% over a 24 hour period.
• PTFE has an indefinite shelf life.
• PTFE has a low void content.

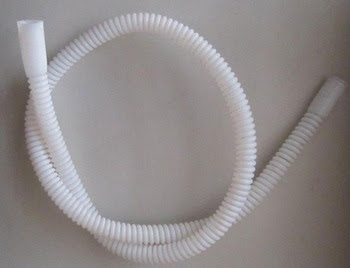

PTFE convoluted hose ID 40mm

PTFE Flexible Hose PTFE convoluted hose in high quality.

It can be replacement of the low strength graphite hose ceramic hose and glass hose Eliminate the high-frequency vibration.It can be the feeding and discharge hose of the tankers tanks containers and reactorsAlso connector of the dislocation pipeline or balance the displacement of the pipeline cause by weather changed or other reason1.Provide DN6-150mm length 20mm-20000mm.Customized are welcome2.Normal wall thickness:1mm-2.5mm thinnest wall can be 0.5mm3.The number of fatigue:>=100004.Enhance woven can be choosed5.Different connect way can be available Generally connected by the Flange Thread Quick connector or directly connect to the equipment fixed by the clamp or the wireWall Thickness Standard: 1.5mm-2.2mmFatigue Times1000Use: It can be used to connect low mechanical graphite porcelain and glass pipeline as supplying and discharging tube of tanker store tank container or reaction kettle. It can be used to connect dislocation pipe to balance pipeline displacement size change due to weather or other causes or to eliminate vibration of high frequency machinery. In some special occasions it can be used as tube reactor or heat exchanger.

Teflon PTFE Virgin Sheet, 1/16" - .062" x 12" x 12" White

Teflon PTFE Virgin Sheet,  1/16" - .062" x 12" x 12" White,Thickness Tolerance ±0.005".

PTFE, also known under the brand name Teflon, is a soft fluoropolymer mechanical plastic with exceptional resistance to high temperatures, chemicals, corrosion and stress cracking.

PTFE features impressive heat, mechanical toughness, electrical and low friction properties, making it the material of choice for many high heat and low friction applications.

PTFE plastic is available in FDA approved, electrical, mechanical, glass-filled and bearing grades.

Toaster 34 1/4" x 12 3/4" PTFE Release Sheets

Length: 34 1/4";Width: 12 3/4"

When your restaurant is in full swing, you can't afford to have anything slowing you down. With these 34 1/4" x 12 3/4" high speed toaster PTFE sheets you can offer your customers a faster, more reliable, streamlined service every time! The durable PTFE material prevents food from getting stuck and causing messes - never again will you have to worry about your toaster line running slow due to the clean up of stuck bread.

The triple-coated flouropolymer material ensures a long life of non-stick performance, up to 30% longer than many comparable release sheets. After use, simply wipe these sheets with a damp cloth for a quick and convenient clean up. Exceptionally heat-resistant, up to 500 degrees Fahrenheit, and easy to use, these non-stick toaster release sheets will help to significantly reduce a common kitchen frustration. These 34 1/4" x 12 3/4" PTFE release sheets are sure to keep your operation running smoothly for a long time to come.

Expanded Teflon Panel , Non-Toxic PTFE Sheet

Expanded PTFE sheet is made of 100% expanded PTFE by using special process that produces a uniform and highly fibrillated microstructure with a great lot of fibers running in multi directions.

PTFE Expanded Sheets gasketing possesses universal resistance against common chemicals, except melted alkali metal, fluorine at liquid and gas states.

It is free from asbestos and other lung-intruding materials. It meets the FDA requirements, doesn't have any corrosion and is able to be stored without any time limits. Some of its features are that it has Good Flexibility, Good Seal ability, highly compressible, Non Contaminating, and Non Toxic etc.


Advantage:1. High dielectric properties ;2. Non-toxic;3. Superb electrical insulating properties ;4. A wide working temperature range from 260°C down to liquid nitrogen temperatures (-260°C) ;5. Lowest coefficient of friction of any known material.;6. Tremendous chemical resistance;7. Limitations: low compressive & tensile strength.;8. Outstanding chemical resistance;9. Extremely low friction;10. Soft and formable;11. Good bearing and wear properties (bearing grade);12. Good weathering resistance;13. Performs well at elevated temperatures;14. Virgin and recycled materials available;15. Any sizes available.

Expanded PTFE Sheet Gasket, White, 1/8" Thick, 15" × 15"

Features:

• Maximum Pressure: 3000 pounds_per_square_inch
• Minimum Temperature: - 450 degrees_fahrenheit
• Maximum Temperature: 600 degrees_fahrenheit

Product Dimensions:

• Width: 2.50
• Length: 15.30
• Height: 1.40

Expanded PTFE sheet is made of 100% expanded PTFE by using special process that produces

a uniform and highly fibrillated microstructure with a great lot of fibers running in multi directions.PTFE

Expanded Sheets gasketing possesses universal resistance against common chemicals, except melted

alkali metal, fluorine at liquid and gas states. It is free from asbestos and other lung-intruding materials.

Expanded PTFE Gasket Sheet

PTFE Sheet is made in a process that produces a uniform and highly fibrillated microstructure with equal tensile strength in all directions. The result material is much softer and more flexible than any other form of PTFE sheet and as a gasket, conforms easily to irregular and rough surfaces. In addition, the material is easier to compress and minimizes creep and cold flow, associated with skived PTFE sheet. PTFE Gasket Sheet will seal all aggressive chemicals over the entire 0-14 pH range except for molten alkali metals and elemental fluorine. Made from 100% virgin PTFE, and will not contaminate or discolor end products.

16 3/5" x 8 3/8" PTFE Release Sheets

When your restaurant is in full swing, you can't afford to have anything slowing you down. With these 16 3/5" x 8 3/8" PTFE panini grill release sheets, you can offer your customers a faster, more reliable, streamlined service every time! Four built-in guide holes make these sheets easy to apply to your compatible grill. The durable PTFE material prevents food from getting stuck and causing messes - never again will you have to worry about your grill line running slowly due to the cleanup of stuck bread, cheeses, and more.

The triple-coated flouropolymer material ensures a long life of non-stick performance, up to 30% longer than many comparable release sheets. After use, simply wipe these sheets with a damp cloth for a quick and convenient cleanup. Exceptionally heat-resistant, up to 500 degrees Fahrenheit, and easy to use, these non-stick panini grill release sheets will help to significantly reduce a common kitchen frustration. These 16 3/5" x 8 3/8" PTFE sheets are sure to keep your operation running smoothly for a long time to come.

Overall Dimensions:
Length: 16 3/5"; Width: 8 3/8"

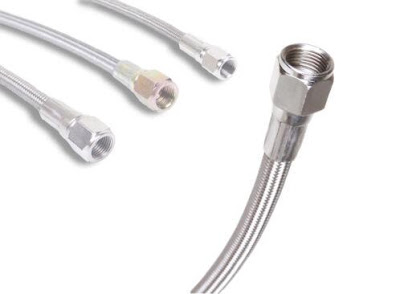

Stainless Braided PTFE Teflon Fuel Line Oil Gas Hose

• Braided stainless steel outer cover for excellent abrasion resistance.
• Max Pressure is rated to up to 4000 PSI.
• The continuous temperature rating from -70°C to 250°C.

The PTFE lined hose is designed to handle any fuel (including methanol and nitromethane), oil, coolant, brake, transmission, clutch, powersteering fluids and nitrous oxide. Suitable for Brake, E85, Alcohol, Nitro, transmission, cluth, nitrous, power steering, oiling, hydraulics & vacuum applications.

Item Specifications
Type	Brake Line Hose
Length	1 Meter / 3.3ft
Materials	Inner PTFE Telfon White
Materials Outer Cover	Stainless Steel Braided
Color	Silver
ID	1/8inch - 3.1mm
OD	1/4inch - 6.5mm
Max. Continuous Length	50 Meter / 160 FT

PTFE Braided Hose/Line 50 cm 6AN O.D. 11 mm 7/16" w/ F

Description:

• Braided Steel PTFE Lined / Hose 6 AN Straight to Straight 50cm with 6AN female connectors on both ends.
• Braided stainless steel outer cover for excellent abrasion resistance.
• Max Pressure is rated to up to 4000 PSI.
• The continuous temperature rating from -70°C to 250°C.
• Hose Size: 3/8" ID or 10 mm ID
•        7/16" OD or 11 mm OD

Application:
The hose is designed to handle any fuel (including methanol and nitromethane), oil, coolant, brake, transmission, clutch, powersteering fluids and nitrous oxide. Suitable for Brake, E85, Alcohol, Nitro, transmission, cluth, nitrous, power steering, oiling, hydraulics & vacuum applications.

Teflon - PTFE Plastic Round Rod 1-1/8" dia

PTFE (Polytetrafluoroethylene) is most commonly known as "Teflon" a brand name of the material produced by Dupont. It is a self-lubricating that offers the lowest coeffecient of friction of any material. It also has astonishing chemical resistance along with a service operating temperature of 500F.

PTFE tube has many applications throughout industry. The unique properties allow the tubing to solve problems possible with no other material. Compared with similar polymers it normally has the bestprice/performance ratio.

Material: Plastic
Grade: Virgin PTFE
Color: White
Shape: Round Rod
Diameter: 1-1/8 inch
Length: 24 inches

PTFE Teflon Tube Pipe Dia 16mm ~ 65mm White

PTFE Tube by Extruded, Molded and Filled. Extruded ptfe tubing OD from 1mm to 300mm. Molded ptfe tubing from 30mm to 600mm.Filled ptfe( Filled graphite, Filled Fiber glass, Filled Bronze, Filled Carbon ), Size OD from 30mm to 600mm.

Working temperature:-180 ~ +260 degree;Elongation:230% ;Tensile strength: 18 MPa;Density: 2.1~2.3 g/cm^3

PTFE Film Sheet Heat Press .005 x 16"x30FT

Protect from keeping your heat press & garments clean from any residue on the heat plate.  Can be used well over 2,000 uses

• Material: PTFE(polytetrafluoroethylene)
• Teflon Roll for Heat Press
• 1 Premium Teflon Roll
• 16 Inches by 10 Yards
• Working temperature range: -200-260℃

Teflon film, made from polytetrafluoroethylene (PTFE), are widely known hydrophobic materials.Wide operating temperature range: -200-260℃;High Corrosion resistance, for most chemicals and solvents, showing an inert,resistant to acid and alkali, water and various organic solvents; Outstanding flame retardancy, Safe and reliable; Ideal mechanical properties include anti-aging properties especially for bending and wobble applications.

PTFE Film White Teflon Thin Sheet 0.5×1×0.1mm

PTFE Film White Teflon Thin Sheet 0.5×1×0.1mm

• Material: PTFE(polytetrafluoroethylene)
• Color: White
• Width: 1000mm (3 ft.)
• Length: 500mm (20 inch)
• Thickness: 0.1mm(0.004 inch)
• Working temperature range: -200-260℃

Wide operating temperature range: -200-260℃;High Corrosion resistance, for most chemicals and solvents, showing an inert,resistant to acid and alkali, water and various organic solvents; Outstanding flame retardancy, Safe and reliable; Ideal mechanical properties include anti-aging properties especially for bending and wobble applications.

Teflon PTFE Film Sheet 500mmx500mmx8mm

PFTE (Polytetrafluoroethylene) is most commonly known as "Teflon" a brand name of the material produced by Dupont.
It is a self-lubricating that offers the lowest coeffecient of friction of any material.
It also has astonishing chemical resistance along with a service operating temperature of ±500F.

• Material: PFTE (Teflon )
• Grade: Raw materials
• Length: 500mm
• Width:   500mm
• Thickness: 8mm
• Color: White
• Other Size:0.2 mm;0.5 mm;More Size:PTFE Film.

Package Includes : 1pcs 500x500x8mm  PTFE Film

Teflon PTFE Film Sheet 500mmx500mmx0.5mm

Package include:1pcs 500mm * 500mm * 0.3mm

• High temperature - Use working temperature of 250 ℃.
• Low temperature - with good mechanical toughness; even if the temperature drops to -196 ℃, but also to maintain a 5%elongation.
• Corrosion - for most chemicals and solvents, showing an inert, resistant to acid and alkali, water and various organicsolvents.
• Weatherability - the best plastic aging life.
• High lubrication - is a solid material in the lowest coefficient of friction.
• Not adhere to - is a solid material in the minimum surface tension, does not adhere to any substance.
• Non-toxic - with physical inertia, as a long-term implantation of artificial blood vessels and organs of the body withoutadverse reaction.
• Electrical insulating properties - can withstand 1500 volts high voltage

Other Size:0.2 mm;0.5 mm;More Size:PTFE Film.

UHMWPE ROD - BLACK & NATURAL, OD 2.5'' - 12''

Reprocessed UHMWPE can be fabricated to make wheels, component parts, pinion gears and flanged rollers. It has seen applications as diverse as railroad cars, spacecraft and hydroelectric plants.

Features:

* Odorless, tasteless and nontoxic
* Highly corrosive to chemicals (except oxidizing acids)
* Extremely low moisture absorption
* Very low coefficient of friction
* Self-lubricating
* Highly resistant to wear and abrasion
* Easy to fabricate and machine with common shop and woodworking tools
* Reprocessed grades, enhanced bearing and wear grades available, FDA compliant grades available for greatly extended part life
* Reduced maintenance costs and energy consumption
* Extends equipment life

UHMWPE is a common machinable plastic known for durability, versatility and cost-effectiveness as well as abrasion, impact and chemical resistances. UHMWPE plastic features a molecular weight that ranges from 3.1 million to 100 million grams per mole, with an abrasion resistance that continues to improve as molecular weight increases.

Reprocessed UHMWPE is an eco-friendly and economical alternative to standard virgin UHMWPE that uses a blended version of virgin and recycled UHMWPE. Reprocessed UHMWPE is excellent for non-food applications and offers all the benefits of standard UHMWPE at a much more cost effective price. Reprocessed UHMWPE features the same low coefficient of friction as standard UHMWPE while also offering a slightly better wear resistance. Reprocessed UHMWPE is used extensively for chain guides, wear rails, chute liners, truck liners, hopper liners and many other applications where excellent wear properties are required. The standard color of reprocessed UHMWPE is black.

Rod, UHMW-PE, Black, 1/2 In Dia x 6 Ft L

Rod Stock, Black Virgin, UHMWPE Rod, Black Color, Diameter 1/2 In, Length 6 Ft, Diameter Tolerance +0.060/-0.000 In, Length Tolerance +0.060/-0.000 In, Min. Temp. Rating -22 Deg. F, Max. Temp. 180 F, Tensile Strength 5800 PSI

Standards: -	Max. Temp. (F): 180
Item: Rod Stock	Material: UHMW-PE
Color: Black	Length Tolerance: +0.060/-0.000"
Type: Black Virgin	Min. Temp. (F): -22
Tensile Strength (PSI): 5800	Impact Strength (Lbs.): -
Length: 6 Ft	Diameter Tolerance: +0.060/-0.000"
Diameter: 1/2"	Country of Origin (subject to change): United States

1/16" OD x .010" ID Blue Fluoropolymer Tubing

Fluoropolymer Tubing is specifically designed for more critical, low and medium pressure applications. Most of this tubing is designed with translucent to transparent materials making it easy to see fluids flow.

Material: Fluoropolymer
Tube ID: .170"
Tube OD: 1/4"
Maximum Operating Pressure: 165 PSI at 72°F (22°C)
Maximum Temperature: 300°F

Applications: Fluoropolymer tubing is of food quality and provides excellent resistance to aggressive and corrosive agents as well as high temperatures.
Construction: clear; FDA compliant materials.

1/4" OD x .17" ID Fluoropolymer Tubing

Fluoropolymer Tubing 1/4" OD x .17" ID

Material: Fluoropolymer
Tube ID: .170"
Tube OD: 1/4"
Length: 25' roll
Wall Thickness: 0.031
Maximum Operating Pressure: 165 PSI at 72°F (22°C)
Maximum Temperature: 300°F
Weight (lb): 0.7

Applications: Fluoropolymer tubing is of food quality and provides excellent resistance to aggressive and corrosive agents as well as high temperatures.
Construction: clear; FDA compliant materials.

1/2X260" PTFE Seal Tape

1/2X260" PTFE Seal Tape, Pack of 25 1/2" x 260", Virgin White PTFE Thread Seal Tape, 0.4 Density, 0.003" Thickness, Temperature Range -400 Degrees Fahrenheit To 500 Degrees Fahrenheit.

Color: Multicolor
Assembled Product Dimensions (L x W x H): 2.00 x 2.00 x 1.20 Inches

55mm x 39.5mm x 6.3mm O Ring PTFE Seal

PTFE Ring Outside Diameter : 55mm / 2.16";
Ring Inner Diameter : 39.5mm / 1.55"
PTFE Ring Height : 6.3mm / 0.248";
Color : Black & Brown
Net Weight : 14g
Package Content : 1 x Piston Ring Seal

The PTFE Seal ring for pistons. Composed of a PTFE wear-resistant ring and an O-ring. With its elasticity, the O-ring can offer compensation for the wear of the PTFE ring. Applied to the sealing of hydraulic cylinder piston.

PTFE Teflon Rod,Plastic Rod.Dia 0.25" - 4"

PTFE, or Polytetrafluoroethylene, is a fluoropolymer that is resistant to heat and chemicals. PTFE is inert to mostly all chemicals and is considered the slipperiest material in existence. It has an extremely low coefficient of friction, and is used as a coating on cookware, gaskets, seals, and hoses. It is unaffected by virtually all acids and caustics, functioning in environments up to 500°F, and as low as -350°F. Virgin PTFE is approved by the Food and Drug Administration for use in the food, beverage, cosmetics and pharmaceutical industries.

Features:

• Extremely low co-efficient of friction
• Excellent chemical and weather resistance
• Great electrical insulator
• Great thermal stability and operating temperature range
• Resistant to chemicals and moisture
• FDA approved for food handling (Virgin)

PTFE Rod exhibit astonishing chemical resistance. PTFE is a self-lubricating material that provides a low friction coefficient, and is ideally suited for the manufacture of corrosion-resistant gaskets & seals. PTFE stands for PolyTetraFluoroEthylene, it is a fluorocarbon-based polymer.

1" PTFE Teflon Rod

PTFE is a low friction fluoropolymer with outstanding chemical and weathering resistance. The working temp range is -20°F - 500°F. It has the lowest coefficient of any solid. It has no slip-stick characteristics; static and dynamic coefficients are equal. Nothing sticks with any strength to unheated surfaces. Both virgin and mechanical grades are UV stabilized.


Polytetrafluoroethylene (PTFE) is a high molecular weight polymer, one of the most versatile plastic materials known and can be used for applications where other materials can't be used.

The most outstanding characteristics are:
* high heat resistance
* high resistance to chemical agents and solvents
* high anti adhesiveness
* high dielectric properties
* low friction coefficient
* non-toxicity


Advantages of PTFE Rod:Coefficient of friction is incredibly low. Maximum working temperature of +260 degrees C (+300 degrees C for short periods).Minimum working temperature -260degrees C.Outstanding electrical insulation properties......

PEEK ROD - NATURAL

PEEK is high temperature-resistant engineered thermoplastic with excellent chemical and fatigue resistance and thermal stability. PEEK exhibits superior mechanical and electrical properties with a maximum continuous working temperature of 480°F and excellent retention of mechanical properties up to 570°F in a steam or high-pressure water environment. Superior chemical resistance has allowed PEEK to work effectively as a metal/stainless steel replacement in harsh environments, and has proven to be a reliable replacement for other materials that cost up to 10 times more.



Features
* Excellent mechanical and chemical resistance

* Highly resistant to thermal degradation

* Excellent strength, stiffness and dimensional stability

* Easy to process

* Lightweight compared to steel, aluminum and titanium

* Low coefficient of friction

* High wear resistance without lubrication

1/2" PEEK Rod

Chemically resistant structural and bearing & wear material for continuous use to 480°F (250°C).

Product profile: Excellent chemical resistance. Very low moisture absorption. Inherently good wear and abrasion resistance.

Unaffected by continuous exposure to hot water or steam.

PEEK grades offer chemical and hydrolysis resistance similar to PPS, but can operate at higher temperatures.

PEEK rod offers steam and wear resistance. This general purpose grade is unreinforced and offers the highest elongation and toughness of all PEEK grades. Meet FDA requirements CFR 21 Section 177.2415 & 177.2416 and ASTM D6262 S-PAEK 0111. Natural in color.

Dia 5.5 mm / 0.2 inches Teflon Rod

PTFE has a unique combination of properties that make it weatherable and also good for use in high temperature and electrical insulation applications. PTFE is chemically inert and also possesses a low coefficient of friction and excellent non-adhesion properties.
Product Features

Shape: Rod
Material: PTFE / Teflon
Diameter: 5mm / 0.2in
Length, in: 80cm / 2.62ft

PTFE Teflon Rod,Dia.1-1/2"

Description

• Teflon PTFE rods are made with virgin Teflon PTFE resins, this Material has a slippery surface and surpasses most plastics when it comes to chemical resistance and performance in extreme temperatures. It resists most solvents and is also an excellent electrical insulator.

Features

• Teflon rod surpasses most plastics when it comes to chemical resistance and performance in extreme temperatures
• Teflon PTFE rods resist most solvents and is an excellent electrical insulator
• Teflon PTFE rods can be used outdoors
• Temperature range : minimum -350F to maximum 500F

Additional Information

• Shipping Weight: 182
• Product Dimensions:
• Width: 9.00
• Length: 13.00
• Height: 2.00

Teflon Rod Bar Dia 1",Ptfe Plastic Rod

PTFE is High molecular weight polymer composed by Carbon and Fluorine based on the polymeric chain -CF2=CF2-. This material is a soft, low friction fluoropolymer with outstanding chemical resistance and weathering resistance.
Mechanical properties can be improved by adding fillers such as glass fibers, bronze, carbon, and graphite.

PTFE is one of the most versatile plastic materials known and can be used for applications where other materials can't be used. The compressive strength at a certain predetermined compression value is one of the most significant mechanical characteristics of PTFE, in a wide range of service temperatures.

Its mechanical properties are low compared to other engineering plastics, but its properties remain at a useful level over a great temperature range (-400° to 500° F).

• Material: PTFE Teflon
• Shape: Rod
• Diameter: 1 inch
• Length: 24 inches
• Finish: Smooth
• Product Weight: 1.60 lbs

White Teflon Rod Dia1.25",PTFE Rod

Poly-Tetra-Fluoro-Ethylene is a fluorocarbon-based polymer and is commonly abbreviated PTFE. The Teflon® brand of PTFE is manufactured only by DuPont.

Several other manufacturers make their own brands of PTFE which can often be used as substitute materials. This fluoroplastic family offers high chemical resistance, low and high temperature capability, resistance to weathering, low friction, electrical and thermal insulation, and "slipperiness".

(Teflon® PTFE and Teflon® FEP & PFA Specifications) PTFE's mechanical properties are low compared to other plastics, but its properties remain at a useful level over a wide temperature range of -100°F to +400°F (-73°C to 204°C). Mechanical properties are often enhanced by adding fillers (see paragraph below). It has excellent thermal and electrical insulation properties and a low coefficient of friction.

PTFE is very dense and cannot be melt processed -- it must be compressed and centered to form useful shapes.

PTFE Lined Hose Braided Stainless

Hose Color	Natural
Hose Inside Diameter (in)	0.187 in.
Hose Length (ft)	10.000
Hose Material	PTFE
Hose Size	-4 AN
Maximum Operating Pressure (psi)	3,000 psi
Outer Material	Braided stainless steel
PTFE Lined	Yes
Quantity	Sold individually.

PTFE-Lined Stainless Steel Braided Hose

Max Temperature Pressure Rating	1440 psig (99.2 bar )
Min Temperature	-65°F ( -53°C )
Max Temperature	450°F ( 232°C )
Room Temperature Pressure Rating	3000 psig ( 206 bar )

PTFE STEEL BRAIDED HOSE LINE

Smooth Bore PTFE hose offers low volumetric expansion at maximum operating pressure making it ideal for pressure systems such as brake, clutch, power steering, gearbox and suspension hydraulics. Low expansion provides a more positive brake pedal with less travel. It is able to operate at high pressure and temperature while remaining robust and flexible. The PTFE innercore is compatible with virtually all fluids and is suitable for air and gas applications.

High Pressure Smooth Bore PTFE hose is designed for high pressure and high impulse severe duty applications. It maintains excellent flexibility due to superior tension controlled single layer small wire diameter plated braid design.

Applications:


Brakes, Clutch, Gearbox Hydraulics and Power Steering
Oil and Air Systems
Gauge, Instrumentation and Sensor Lines
(Complies with rules requiring stainless steel braided hose to be
used for fuel pressure gauge lines).

PTFE Teflon Fuel Oil Gas Braided Steel Hose Line,OD: 8mm 5/16"

Description:
Stainless Steel Braided PTFE Hose Line, Length 1 Foot.
This hose is made of high-quality PTFE on the inside that gives them high chemical and heat resistance, along with a braided stainless steel outside which gives them high durability, extreme pressure resistance, and a professional and high-tech appearance.

Inside Diameter: 1/4" (6mm)
Outside Diameter: 5/16" (8.0mm)
Temperature Rating: -100F to 500F (-73°C to + 260°C) under most operating conditions.

Application:
Universal - fuel, lube, alcohol, ethanol, coolant and air for automobiles.

Stainless Braided PTFE Hose

Type:Stainless Steel Braided PTFE Hose

Hose Construction & Material:It is contructed by PTFE inner with a stainless steel outerbraid. This reduces the spongy feel under arduous conditions. It gives a better response in brake and clutch operation. The stainless braided outer gives an excellent resistance to abrasion and corrosion.

Application:Fuel Line / Turbo Line / Hydralic Line

Description:

• This is a PTFE Racing Hose
• Compatible with Metric Fitting Hose End
• Temperature range of -40 to 180 Degree ( -75 to 350 F )

Stainless Steel Braided PTFE hose features moisture resistance, high temperature tolerance and excellent chemical compatibility. It is designed for use in fluid handling, paint, food and beverage, pharmaceutical and industrial applications.

PTFE Teflon Tube/Pipe,PTFE Hose

Polytetrafluoroethylene (PTFE) is an engineered fluoropolymer. Outstanding resistance to chemicals is one of its primary attributes. A broad temperature range of -100°F to 500°F (-73°C to 260°C) make this hose material suitable for the majority of fluid and ambient temperature conditions found in industry. An extremely low coefficient of friction, (0.05 to 0.20), provides a non-stick surface. Water absorption of PTFE is negligible, less than 0.01% by ASTM test, and it is FDA-approved for food and pharmaceutical use. Additionally, PTFE will withstand flexing and vibration without failure from flex fatigue. PTFE is chemically inert, it will not break down or deteriorate in service and it has an unlimited shelf life because properties do not change with age or exposure to weather.

• 100% brand new and high quality
• Length: 1Meters
• Inner diameter: 1MM-24MM±0.2MM
• Outer diameter: 2MM-24MM±0.2MM
• Voltage withstands: 150-2400V
• Color: White

PTFE hose innercore is offered in smooth bore and convoluted, conductive (Carbon black added) and non-conductive.

Black PTFE Rod,Extruded/Molded Rod

PTFE is the most chemical-resistant and the best dielectric of all known plastics,It is not aging and binding,It can be used from -180°c~+260°c under no burthen circumstances.PTFE has the lowest coefficient of friction of all known solid materials.
If filled carbon materilas,it has creep resistance,chemical resistance and low friction advantage.

Types and specifications

• Extruded rod:       D:5-200mm  Length:1000mm
• Die pressed rod: D:55-300mm Length:100-500mm

Main properties:

• Density: 2.10~2.30g/cm3
• Tensile strength ≥14.00Mpa
• Crack elongation≥140%

Applications:

• Electrical insulation,seal,anti-sticking materials.

other compound materials:

• PTFE Rod can filled carbon,graphite,glass fiber,bronze,and so on,then make different percentage compound rod for creep resistance,chemical resistance,low friction and stiffness.

Black Filled PTFE Rod

Details:

• Colour: White , Black
• Temperature: -180---+260℃
• Filling: glassfiber, graphite, carbon , bronze ,MoS2
• Method: molded , extruded
• Dia: 0.1mm-500mm
• Length: Length (mm):1000,2000 or Custom
• Material: PTFE
• Tips:Carbon, graphite , glass fiber,bronze, MoS2 and other different materials can be filled

Features:
PTFE Rod has excellent all-round properties performing well at both high and low temperatures, being corrosion-resistant, non-stick, self-lubricating and insulating. In addition, it has a low friction coefficient.

PTFE wire - High Temperature wire - 100 FT

 PTFE Wire has excellent thermal aging, solder damage, flame, and moisture resistance. PTFE resists solvents, grease, ozone and other chemicals. Low power loss, ideal for high frequency applications.

Application: PTFE non-stick coated wires are intended for electrical or electronic use in protected applications where high temperature will be encountered. The wires have excellent resistance to thermal aging, solder iron damage, flame, and moisture. PTFE coating also resists solvents, greases, ozone and most other chemicals. These wires are easy to install due to their small size and slippery surface. PTFE has excellent, stable electrical characteristics with low power loss, making it ideal for high-frequency applications.

Description:

• Stranded Silver Plated Copper, Extruded PTFE Insulation

Characteristics:

• Temperature Rating:  -60°C to +200°C
• Voltage Rating: 600 V

PTFE Insulated Wire, White, 150ft

* Conductor Size: 26AWG
* Stranding: 19/38
* Conductor Material: Silver-Plated Copper
* Shielding: None
* Jacketing: Polytetrafluorethylene (PTFE)
* 600V Rating
* Color: White
* Temperature Rating: 392°F (200°C)
* Nominal O.D.: 0.038"

PTFE Wire is used in high temperature electronic applications or where abrasion resistance is required. It has excellent thermal aging, solder damage, flame, and moisture resistance. PTFE resists solvents, grease, ozone and other chemicals. Low power loss, ideal for high frequency applications.

UHMW-PE Rod, White, 3/8 In Dia x 6 Ft L

UHMWPE Rod Stock, Virgin Food Contact Grade, UHMW-PE, White Color, Diameter 3/8 In, Length 6 Ft, Diameter Tolerance +/-0.025 In, Length Tolerance +0.060/-0.000 In, Min. Temp. Rating -22 Deg. F, Max. Temp. 180 F, Tensile Strength 5800 PSI, FDA, USDA, and 3-A Dairy Approved

Standards: FDA, USDA, and 3-A Dairy Approved	Max. Temp. (F): 180
Item: Rod Stock	Material: UHMW-PE
Color: White	Length Tolerance: +0.060/-0.000"
Type: Virgin Food Contact Grade	Min. Temp. (F): -22
Tensile Strength (PSI): 5800	Impact Strength (Lbs.): -
Diameter Tolerance: +/-0.025"	Diameter: 3/8"
Length: 6 Ft	Country of Origin (subject to change): United States

UHMWPE Rod - Black - 2.25in - 2ft

UHMWPE (Ultra High Molecular Weight Polyethylene) is a common machinable plastic known for durability, versatility and cost-effectiveness as well as abrasion, impact and chemical resistances. UHMWPE plastic features a molecular weight that ranges from 3.1 million to 100 million grams per mole, with an abrasion resistance that continues to improve as molecular weight increases.

Machinability
Reprocessed UHMWPE is easy to machine with common woodworking tools, making it extremely cost effective, and outperforms metal in many applications. High durability, low friction and wear resistance are key reasons why reprocessed UHMWPE is the material of choice for many applications. Reprocessed UHMWPE can be machined into virtually anything from small gears and bearings to huge sprockets.

Low Coefficient of Friction
Reprocessed UHMWPE is used in applications where high levels of friction are likely to arise including conveyor guard rails, augers and wear strips, belt scrapers, chain guides, and idler rollers. Due to an extremely low coefficient of friction, its inherent lubricity minimizes heat-generating friction that tends to gradually destroy steel parts, and ensures smooth, noiseless operation.

Self-Lubricating Formula
High durability, low friction and wear resistance are key reasons why reprocessed UHMWPE is the material of choice for a myriad of applications. Reprocessed UHMWPE offers an extremely low coefficient of friction due to a specialized built-in lubricant that replaces unwanted grease and oil. It also enhances efficiency and productivity in many applications. Reprocessed UHMWPE self-lubricating formula helps to extend part life because the internal lubricant ensures that parts will not break or need replacement.
